액츄에이터(Actuator)

VAD Serirs는?

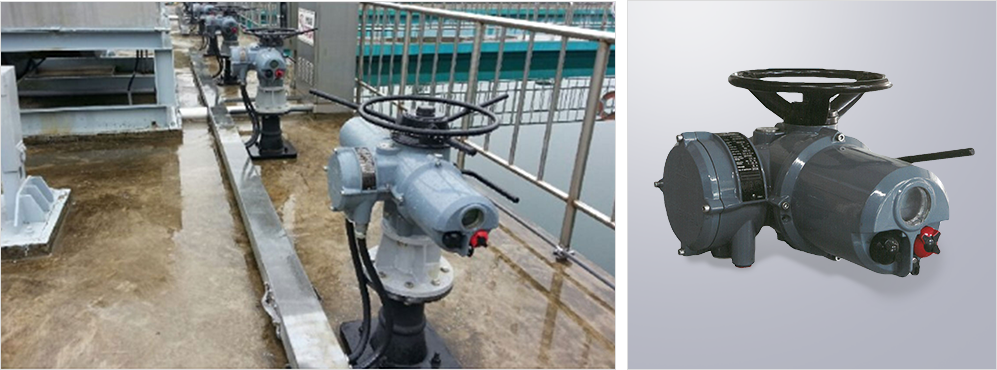

VAD Series는 다회전 방식으로 글로브, 게이트, 버터플라이밸브 및 수문 등에 사용할 수 있으며,
제수변 및 볼밸브, 댐퍼등에도 적용할 수 있습니다.

VAD Series 사양

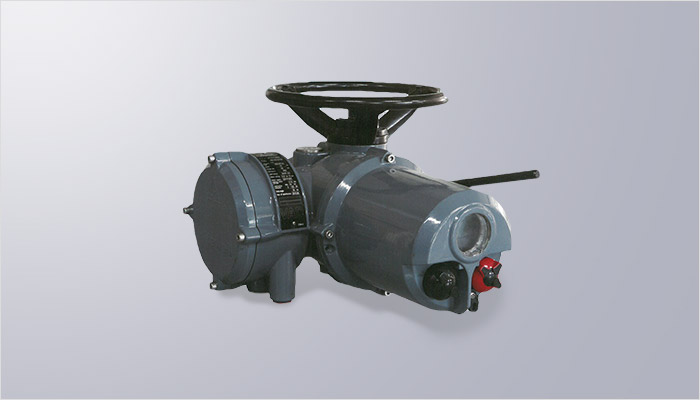

  • VAD
    Range VAD
    • Specification : Multi-turm
    • Max. Torque : 3,000Nm
    • Start per hour : 600
    • on/off Control : standard
    • 4-20mA in & Out : Optional
    • Water proof : IP68
    • Explosion-proof : ExdllBT4, ExdIICT4
    • Temperature : -30℃ ~ 70℃/-50℃ ~ 50℃
    • Power supply : Single three-phase
  • VAD/TB
    Range VAD/TB
    • Specification : Multi-turm
    • Max. Torque : 35,000Nm
    • Start per hour : 600
    • on/off Control : standard
    • 4-20mA in & Out : Optional
    • Water proof : IP68
    • Explosion-proof : ExdllBT4, ExdllCT4
    • Temperature : -30℃ ~ 70℃/-50℃ ~ 50℃
    • Power supply : Single three-phase
  • VAD/TW
    Range VAD/TW
    • Specification : Quarter-turn
    • Max. Torque : 100,800Nm
    • Start per hour : 600
    • on/off Control : standard
    • 4-20mA in & Out : Optional
    • Water proof : IP68
    • Explosion-proof : ExdllBT4, ExdllCT4
    • Temperature : -30℃ ~ 70℃/-50℃ ~ 50℃
    • Power supply : Single three-phase
  • VADM
    Range VADM
    • Specification : Multi-turm
    • Max. Torque : 600Nm
    • Start per hour : 1,200
    • on/off Control : standard
    • 4-20mA in & Out : Optional
    • Water proof : IP68
    • Explosion-proof : ExdllBT4, ExdllCT4
    • Temperature : -30℃ ~ 70℃/-50℃ ~ 50℃
    • Power supply : Single three-phase
  • VADM/L
    Range VADM/L
    • Specification : Linear
    • Max. Torque : 100kN
    • Start per hour : 1,200
    • on/off Control : standard
    • 4-20mA in & Out : Optional
    • Water proof : IP68
    • Explosion-proof : ExdllBT4, ExdllCT4
    • Temperature : -30℃ ~ 70℃/-50℃ ~ 50℃
    • Power supply : Single three-phase
  • VAD/TW/BX
    Range VAD/TW/BX
    • Specification : Quarter-turm
    • Max. Torque : 1800Nm
    • Start per hour : 600
    • on/off Control : standard
    • 4-20mA in & Out : Optional
    • Water proof : IP68
    • Explosion-proof : ExdllBT4, ExdllCT4
    • Temperature : -30℃ ~ 70℃/-50℃ ~ 50℃
    • Power supply : Single three-phase
